Replacement Lamps

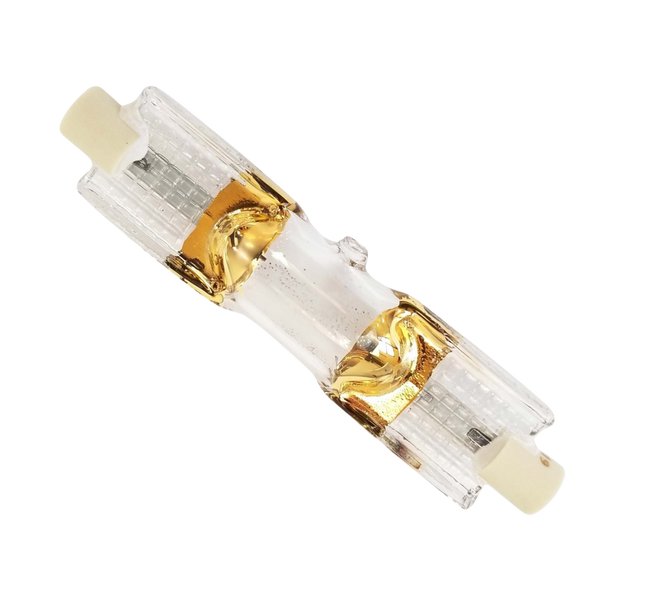

This 200-watt metal halide arc lamp (UV1228) is engineered for compact flood curing systems requiring stable, high-intensity UV output in a small footprint. It delivers focused, uniform irradiance suitable for adhesives, coatings, and specialty resins across a range of wavelengths. Available in UVA, UVB, and visible (420 nm) output configurations. The UVA version is pre-installed in IntelliRay 200 systems and supports most standard curing processes. UVB and visible variants are available for specialized chemistries that require alternative spectral activation. Optimized for use with the IntelliRay 200 and other compatible 200-watt UV flood systems. Each lamp is factory-tested for spectral precision, thermal stability, and consistent irradiance. Select the spectral range that matches your process requirements and maintain reliable curing performance without interruption.

Read more less

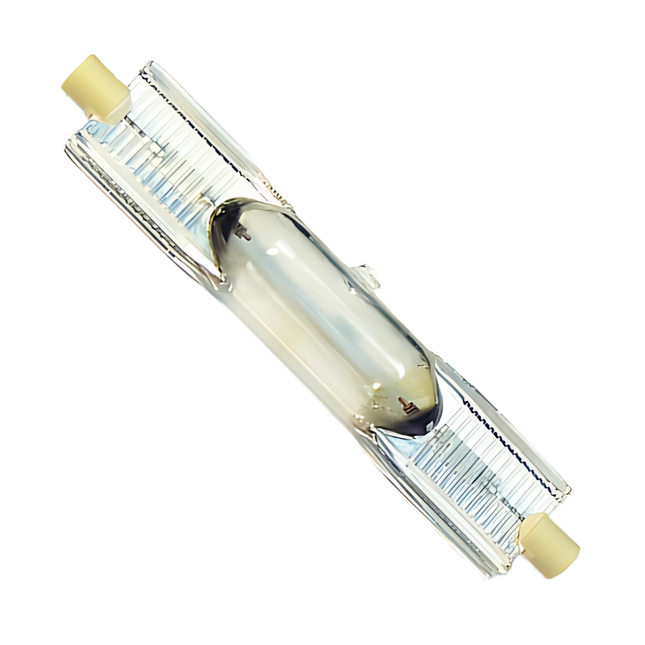

This 600-watt metal halide arc lamp (UV0834) is engineered for high-output UV flood curing in industrial environments where precision and reliability are non-negotiable. It delivers intense, uniform UV irradiance across a broad area, supporting fast cycle times and consistent polymerization in adhesives, coatings, and resins. Available in UVA, UVB, and visible output configurations. The UVA version provides peak output around 365 nm, making it suitable for most standard UV-curable materials. The UVB option extends into shorter wavelengths for processes requiring additional UVC energy. Visible spectrum variants at 420 nm and 460 nm are designed for materials formulated for long-wavelength activation. This lamp is optimized for use in high-intensity flood systems such as the NovaRay and other 600-watt curing platforms. Each unit undergoes full output and stability testing to ensure consistent irradiance and long operational life. Select the spectral output that aligns with your curing chemistry and maintain peak system performance without interruption.

Read more less

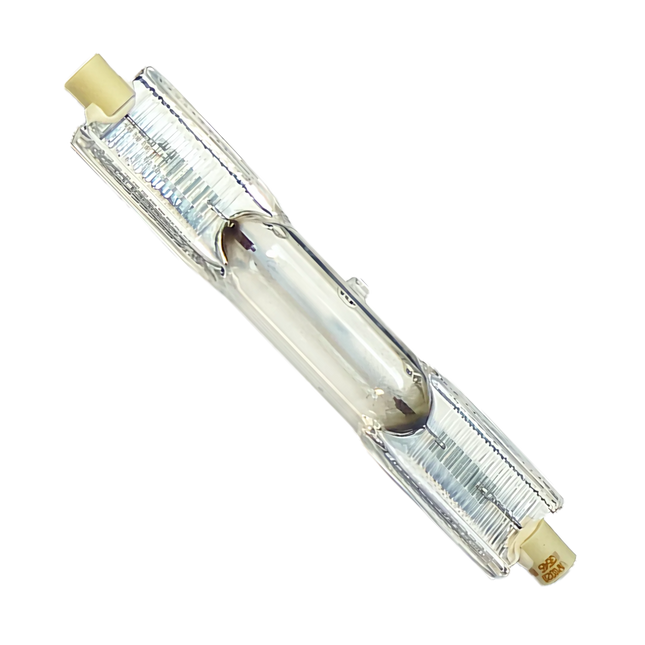

This 400-watt metal halide arc lamp (UV0320) delivers high-intensity UV output for demanding industrial flood curing applications. Engineered for stability, it maintains consistent spectral performance and irradiance across long duty cycles, making it suitable for production environments that require repeatable results. Available in UVA, UVB, and visible output configurations. The UVA lamp is optimized for most standard curing processes, with peak output around 365 nm. The UVB variant extends into the UVC range to support specialized chemistries requiring shorter wavelengths. Visible options at 420 nm and 460 nm are designed for niche adhesives and coatings formulated for longer-wavelength activation. The lamp is fully compatible with Uvitron flood systems including the PortaRay, SunRay, and IntelliRay series. Each unit is tested for output stability, spectral integrity, and operational life before shipment. Select the spectral output that matches your material and process requirements to ensure peak system performance and consistent curing efficiency.

Read more less

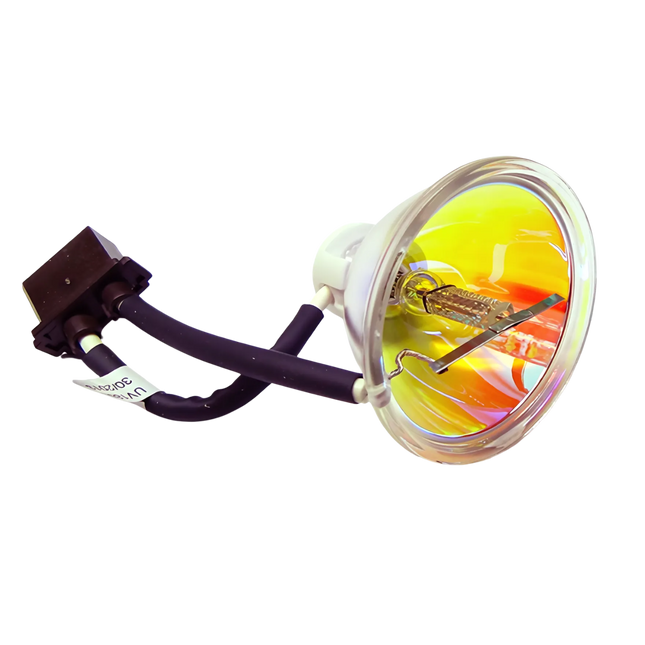

This replacement lamp and reflector module (UV1866) is designed specifically for the SunSpot 2 UV spot curing system and is available in UVA, UVB, and visible output configurations. Each module delivers high-intensity, collimated UV output for precision curing applications where accuracy, speed, and repeatability are critical. The UVA version, included as standard with the SunSpot 2, provides peak output around 365 nm and supports the majority of UV-curable adhesives and coatings. The UVB variant introduces shorter-wavelength energy for specialized formulations. Modules are engineered for quick replacement with no recalibration required. Each unit is tested for optical alignment, output stability, and long operating life to ensure uninterrupted performance in production and R&D environments. Choose the spectral output that matches your material specifications and maintain consistent curing performance across every cycle.

Read more less
