ILT800 CureRight Radiometer
Profiling UV radiometer built for accuracy, speed, and flexibility. It measures from 5 milliwatts per square centimeter up to 40 watts per square centimeter with no need to switch ranges. It works across curing setups including conveyors, flood lamps, spot cures, ovens, fiber optics, 3D printers, pulsed UV, and LED sources. The ILT800 is available in several spectral ranges. These options match the specific type of UV source you're using. For example, use CUV (215–350 nm) for germicidal or deep UV, BAV (275–475 nm) for broad-spectrum systems, UVA (315–390 nm) for mercury arc lamps, UV (250–400 nm) for general-purpose curing, or UVF (275–450 nm) which is the standard filter for most LED and lamp-based setups. Pick the range that best aligns with your light source to get the most accurate readings. It samples 3000 times per second and can store up to 1000 profiles. Every reading logs irradiance, dose, time, temperature, calibration date, battery level, and more. The built-in display shows live data and lets you review current, stored, or previous runs. You can also program up to 20 system IDs to store baseline data for all your curing stations in one device. No extra tools needed. Just place it in the cure path and record. No filters. No manual range selection. It mounts in any direction and works with both pulsed and continuous light. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable. Made in the USA. ISO17025 certified. ILT CureRight Radiometer Brochure
$2,570.00 - $2,720.00
-
MicroCure Sensor and Data Reader
The sensor goes into your curing environment, records total UV energy and peak irradiance, then the reader pulls that data and displays the results. No cables, no extra setup, just accurate readings in tight spaces. The sensor is tiny. About 1.3 by 0.95 by 0.25 inches. It weighs a third of an ounce. It fits inside bottles, cans, three-dimensional objects, and small conveyors where other radiometers can't go. It runs automatically, samples 2000 times per second, and holds up under high heat. Built for UV systems that demand precision and can't spare the space. Reads total energy in joules per square centimeter and peak intensity in watts per square centimeter. Used across industries for small part bonding, semiconductor curing, web printing, and any application where space and accuracy both matter. Battery powered. Automatic. No manual input needed. You place it, it runs, and the data is ready when you are. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable. Weight: 3 lbs Dimensions: 12 x 12 x 5" MicroCure Radiometer & DataReader Brochure
$2,570.00
-
Power Puck II Radiometer
Four-channel radiometer that gives you a full picture of your UV curing environment in one pass. It measures UVA, UVB, UVC, and UVV simultaneously and shows total UV dosage and peak intensity for each on the built-in display. You’ll use it to verify lamp performance, compare curing systems, spot shifts in doped lamp output, and track changes over time. It’s built for curing inks, adhesives, solder masks, and epoxies. Not intended for web press applications. This model is the standard display-only version. It does not transfer data to a PC. The display scrolls through the readings for each UV range directly on the device. No extra software, no exports. Just straight-up numbers when and where you need them. Power range must be selected at the time of order. Available in high, mid, or low power configurations. High: UVA, UVB, UVV 100 to 10,000 mW/cm², UVC 10 to 1,000Mid: UVA, UVB, UVV 10 to 1,000, UVC 1 to 100Low: All bands 1 to 100 Comes with a carry case. Runs on batteries. Built for industrial use. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable. Weight: 3 lbs Power Puck II Radiometer Brochure
$4,650.00
-
SpotCure Radiometer
A compact and portable radiometer designed to measure UV intensity in spot curing systems. It’s the standard for establishing, validating, and verifying small-area UV curing performance. Use it in production to monitor lamp output, check light guide condition, optimize positioning, and maintain consistent curing results. No cords, no connectors, no hassle. This is a self-contained, electro-optic instrument powered by a long-life battery that supports over 100,000 readings. The cylindrical body fits comfortably in one hand, and the built-in optics are located at the head of the unit. Light guide adapters snap into place and are available to fit most sizes. Three adapters are included with each unit. Measurement is instant and straightforward. Place the light guide in the adapter, activate your UV source, and get immediate intensity feedback. Perfect for routine QC checks, new system evaluations, and ongoing process monitoring. Two versions available. Standard range supports up to 20 watts per square centimeter. Extended range supports up to 100. Both versions come with a protective carry case. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable. Weight: 2 lbs Dimensions: 9 x 6 x 3" SpotCure Radiometer Brochure
$1,240.00 - $1,380.00
-
UVICure Plus II Radiometer
This is the tool for measuring UV intensity and energy during curing. It reads both peak UV in watts per square centimeter and total UV dosage in joules per square centimeter. It's made for curing inks, adhesives, solder masks, and epoxies. Not meant for web press setups. Each unit is single-channel. You choose UVA, UVB, UVC, or UVV when ordering. Comes with a carry case and calibration cert. You’ll use this to track lamp output, compare curing systems, troubleshoot curing issues, and verify process consistency. The display shows real-time numbers and a curve of irradiance over time. You can store a reference run for quick comparison later. There's a toggle to switch between graph and reference view. Smooth sample modes adjust how often data is collected, with faster settings detecting AC cycling from the power supply. Profiler versions can export data to EIT software but must be ordered that way from the start. You can order in high, mid, or low power ranges depending on your UV source. High covers 100 to 10,000 mW per square centimeter. Mid covers 10 to 1,000. Low is 1 to 100. The spectral band options are UVA at 320 to 390 nanometers, UVB at 280 to 320, UVC at 250 to 260, and UVV at 395 to 445. All units have cosine spatial response and operate up to 75 degrees Celsius internally. The whole thing runs on two AAA batteries and lasts about 20 hours. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable. Weight: 3 lbs UVICure Plus II Radiometer Brochure
$1,990.00
-
Uvitron Arc Lamp Power Supply
Choose a full-featured or economical power supply in 400W or 600W. Both deliver stable, repeatable output. The difference is how much control your system needs. The full-featured model supports 400W and 600W UV arc lamps with automatic global voltage input and tightly regulated power. Standby mode reduces output during idle time. Built-in 5V and 24V outputs power fans, shutters, or control logic. Use it for conveyor lines, UV chambers, or modernizing older setups. The economical model is compact and simple. Available in 120V or 240V, it powers 400W or 600W mercury vapor or metal halide lamps. It has a built-in high-voltage igniter, a 12V output for a fan, and a lamp-ready LED. Ideal for bench systems, portable enclosures, or budget builds. Both are built to perform. Pick the one that fits your system and get to work.
$599.00
-
Uvitron IntelliRay
The IntelliRay is a fully integrated UV flood curing system that has been a trusted choice in manufacturing, lab, and cleanroom environments for over two decades. Engineered and built in the USA by Uvitron International, it combines a compact, self-contained design with proven performance. Everything is housed in the lamp head. No external power boxes, no loose wiring, and no additional setup required. Just mount it, plug it in, and start curing. The system uses a long-life 400 or 600W arc lamp paired with a precision parabolic reflector to produce consistent, high-intensity UV output across an 8 x 6 inch area. It supports UVA, UVB, and visible spectrum lamps, making it compatible with a wide range of adhesives, coatings, and other light-curable materials. The integrated shutter and programmable exposure controls give you precise timing and repeatability. Real-time system feedback is displayed on an onboard LCD screen, and the built-in UV Power-Plus driver keeps output stable regardless of voltage fluctuations. Available with or without a light-shielded curing chamber, the IntelliRay is suited for standalone use or as part of a larger production setup. The optional chamber includes a door interlock and adjustable-height tray for safe, repeatable operation. Every unit ships from the USA and is backed by a two-year warranty from the original manufacturer. Choose the lamp head only if you’re integrating into an existing setup or enclosure. Select a configuration with the curing chamber to ensure operator safety and a fully shielded curing environment. The 600W version offers higher intensity for faster curing or more demanding applications.
$4,299.00 - $5,699.00
-
Uvitron LED Light Guide - 2m
Durable, high-performance light delivery for precision UV curing This 2-meter LED light guide is built for use with the SkyBeam UV curing system and is available in two cooling options to match your setup. Choose between a convection-cooled or fan-cooled variant depending on how you manage heat and airflow around your curing station. Both versions deliver efficient, high-intensity UV output from the SkyBeam unit directly to the target cure zone with minimal loss. Whether you're working on circuit boards, bonding optical components, or curing medical-grade adhesives, this guide provides the control and consistency your work demands. The light guide includes both a 6mm and 12mm lens, giving you flexibility in beam size depending on your application. With a rugged, durable build and high thermal tolerance, it’s designed for continuous use in production or lab environments. Convection-cooled is ideal for quieter or sealed environments where fan noise or airflow may be restricted. Fan-cooled offers active heat dissipation for higher-demand or enclosed setups where added airflow supports more aggressive curing cycles. MPNs: UV4053, UV4054. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable.
$459.00
-
Uvitron Liquid Light Guide - 5mm
Precision light delivery for UV spot curing systems This liquid-filled light guide delivers efficient, high-intensity UV transmission with minimal loss. The 5mm core provides a focused beam ideal for spot curing applications that demand precision and reliability. Each guide features Lumatec-compatible end tips and durable PVC sheathing for added protection and long service life. Available in 1 meter, 1.5 meter, and 2 meter lengths to suit your system layout. Designed to connect seamlessly with standard UV spot curing units and withstand repeated use in lab and production environments. Compatible with the SunSpot 2. Ships standard with the SunSpot 2. Buy as a replacement or an extra. MPNs: UV0570, UV0571, UV0572. This item is special order and is non-returnable, non-refundable.
$386.00 - $522.00
-
Uvitron NovaRay
The NovaRay is Uvitron’s highest-performance flood curing system, engineered for manufacturers who demand precision, repeatability, and total process control. It uses a 600W arc lamp to deliver uniform UV exposure across a spacious, temperature-regulated chamber. This even distribution is essential when post-curing brittle dental resins, optical adhesives, or thick industrial composites. Uneven curing introduces stress, deformation, or underperformance. The NovaRay eliminates those risks by maintaining thermal and radiometric stability throughout the entire cycle. Operators can create, save, and load curing profiles with specific intensity, spectral output, and exposure duration settings. This is critical for production lines that handle multiple formulations or cure-sensitive chemistries. Switching between materials takes seconds, not hours, and accuracy is retained at every stage. The integrated touchscreen provides full access to all control parameters. It is not just convenient; it reduces training time and operational error. Password-protected access ensures that only authorized personnel can alter parameters, which is essential in GMP-regulated environments. Every parameter adjustment, system cycle, and user login is automatically logged and stored. This provides full traceability for regulatory audits, ISO certification, and internal quality assurance. No additional software or middleware is needed. Built-in USB, Ethernet, and RS-485 connectivity allows seamless integration into MES systems, programmable logic controllers, or standalone workflows. The NovaRay is built in the United States, assembled under strict quality standards, and supported by a team that understands high-volume production environments. It delivers consistent output, low maintenance overhead, and full compliance support without compromising throughput or reliability. You won’t find the NovaRay at a lower price anywhere else. If you do, we'll match it.
$4,399.00 - $4,599.00
-
Uvitron PortaRay
The PortaRay is a compact, high-intensity UV flood curing system engineered for mobility, precision, and consistent output. It delivers uniform UV exposure across a 5 x 5 inch curing area using a long-life arc lamp, available in 400 or 600 watt configurations. Users can choose between a parabolic reflector for wide-area coverage or a focused reflector for concentrated intensity. Both reflector options are field-replaceable and optimized for specific curing geometries and energy densities. The system’s internal power supply regulates lamp output in real time, minimizing drift and ensuring consistent irradiance throughout extended use. A built-in standby mode lowers lamp power during idle periods, significantly reducing thermal load and extending overall lamp life. With a warm-up time of under 60 seconds, the PortaRay is ready to operate quickly, improving throughput in short-run or on-demand processes. Weighing just 3 pounds, the PortaRay is designed for maximum integration flexibility. It can be handheld for field or repair work, or securely mounted to fixtures, stands, conveyors, or robotic arms for in-line use. All components are self-contained within the lamp head. There is no separate controller or ballast to install, wire, or calibrate. Simply connect to AC power and begin operation. Forced-air cooling maintains internal temperatures within safe operating limits, enabling continuous-duty cycles in demanding environments. The system is suited for lab-scale development, high-mix low-volume production, or field-service applications where full-size systems are impractical. Its compact form factor and industrial-grade output make it ideal for curing adhesives, coatings, or inks where space, portability, or rapid setup is required. Note: This configuration includes the PortaRay lamp head only. The optional carrying case is sold separately. MPNs: 400W, 120V, Parabolic Reflector - UV2270 400W, 240V, Parabolic Reflector - UV2267 400W, 120V, Focused Reflector - UV2272 400W, 240V, Focused Reflector - UV2269 600W, 120V, Parabolic Reflector - UV2265 600W, 240V, Focused Reflector - UV2258
$1,699.00 - $1,899.00
-

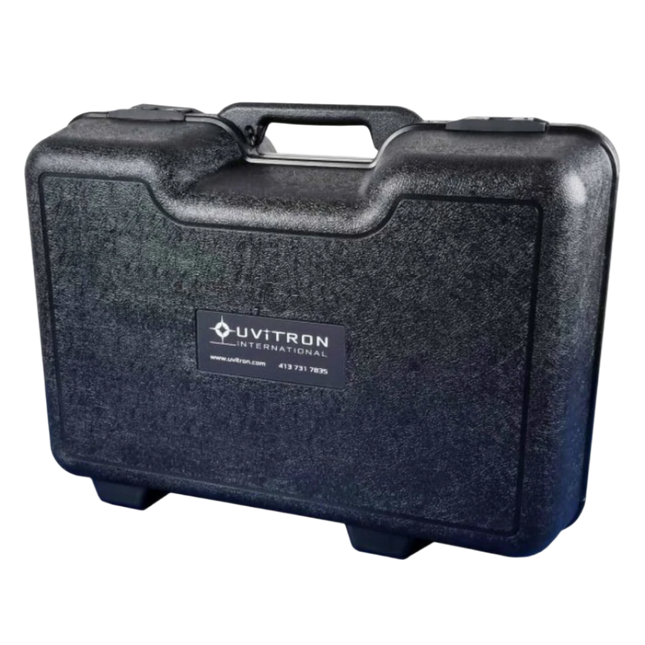

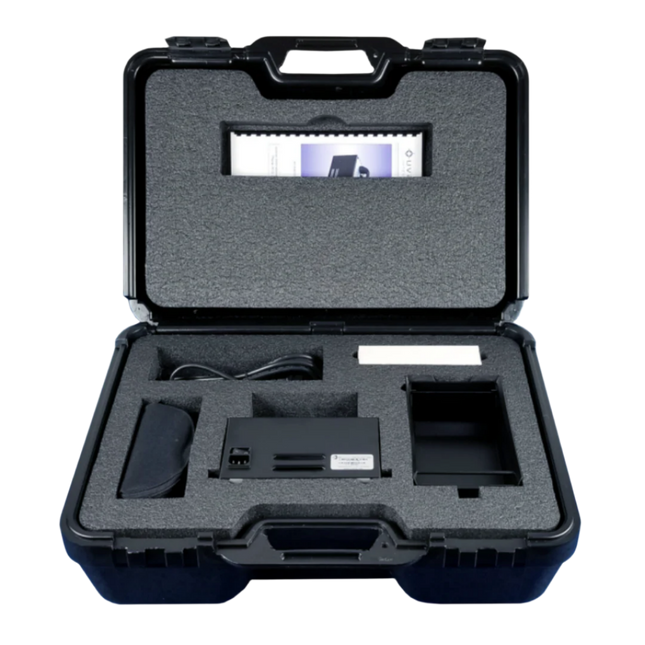

Uvitron PortaRay Carrying Case
Rugged, foam-lined carrying case designed for safely transporting the PortaRay UV lamp system. Custom-cut compartments securely hold the lamp head, UV safety glasses, headrest, power cord, spare lamp, and instruction manual.
$499.00
You have seen 12 out of 24 products
