Uvitron SkyBeam
Uvitron SkyBeam
$2,899.00
-
Guaranteed secure & safe checkout.
- Delivery within 5-10 business days
- Free shipping on all orders
- 3% store cashback
- We accept all major credit cards
- Ships from USA
Description

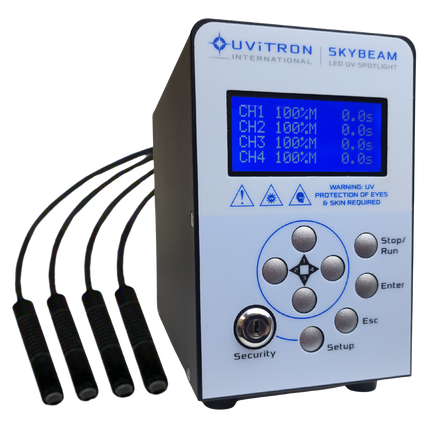

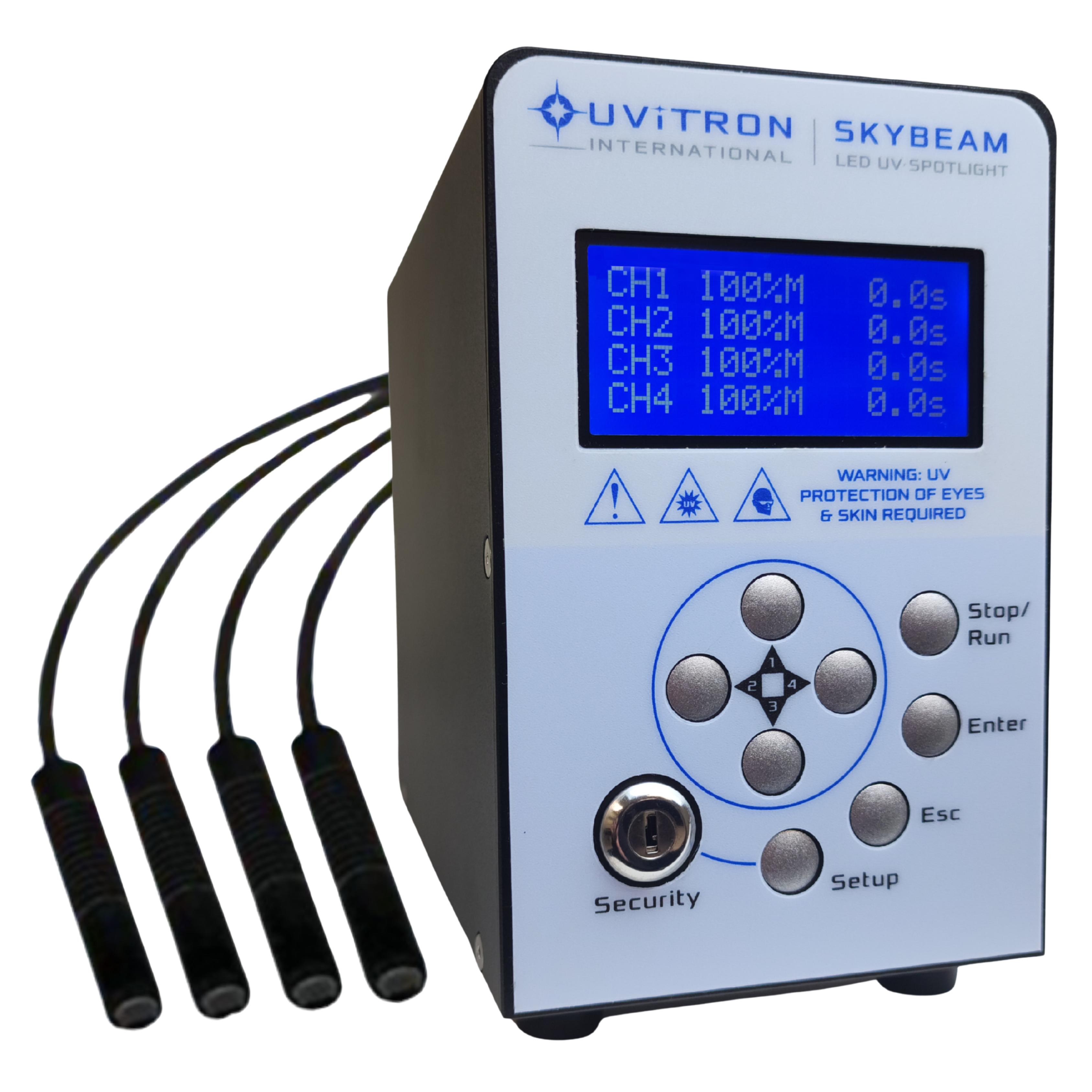

The SkyBeam is a high-intensity LED spot curing system engineered for precision curing of UV adhesives, coatings, and resins. Delivering up to 14,000 mW/cm² at the tip, the SkyBeam supports fast cure times with minimal heat transfer to the workpiece, making it ideal for thermally sensitive substrates and components. Available in 365, 385, 395, and 405 nm wavelengths, the SkyBeam offers compatibility with a wide range of UV chemistries used in electronics, medical devices, optics, and industrial assembly.

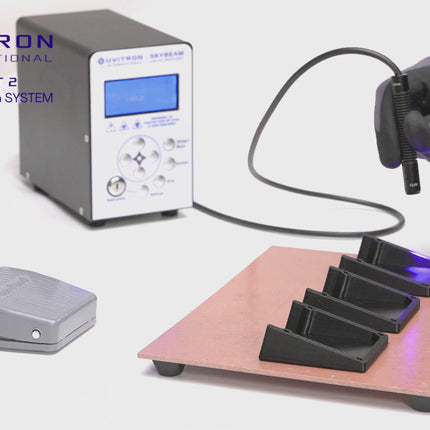

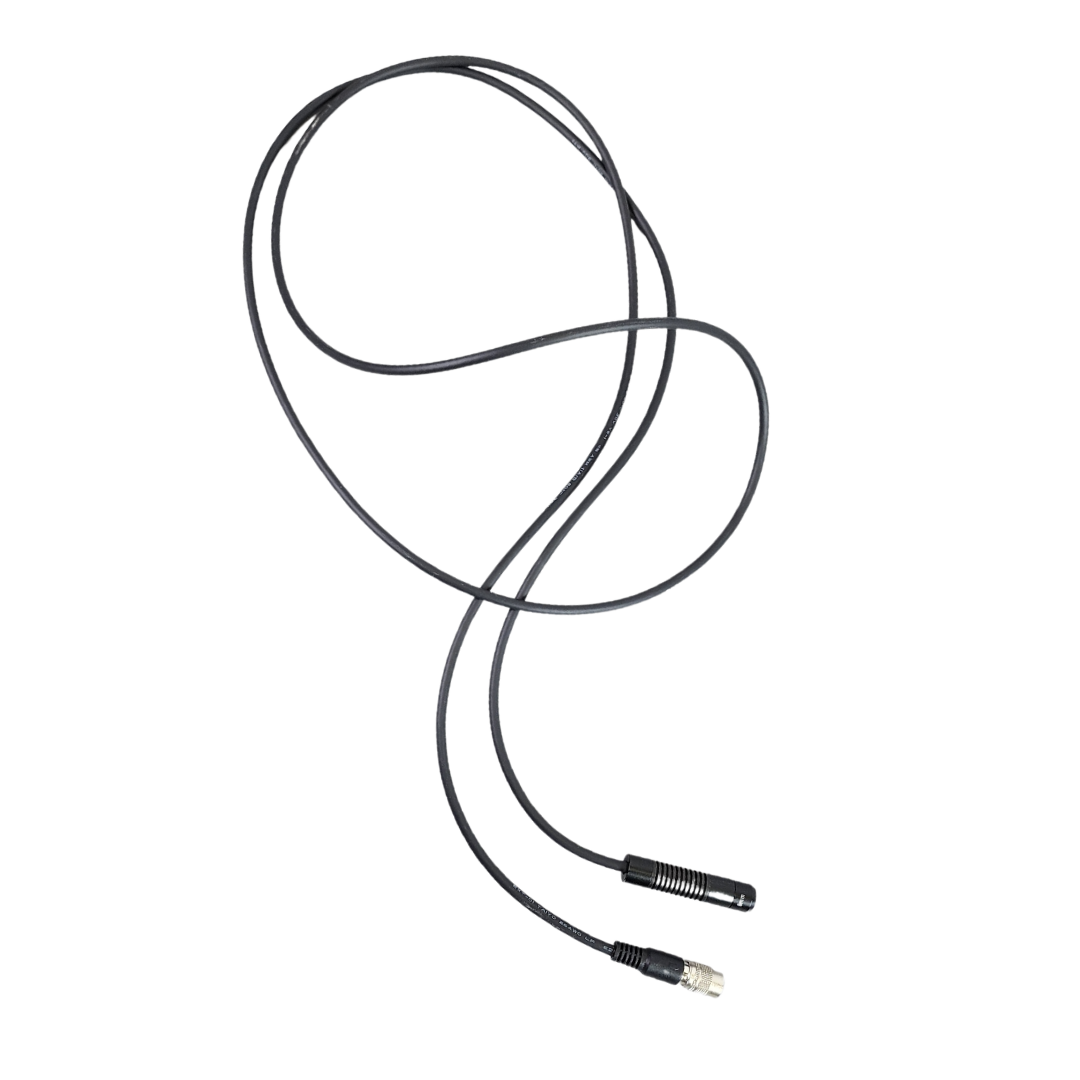

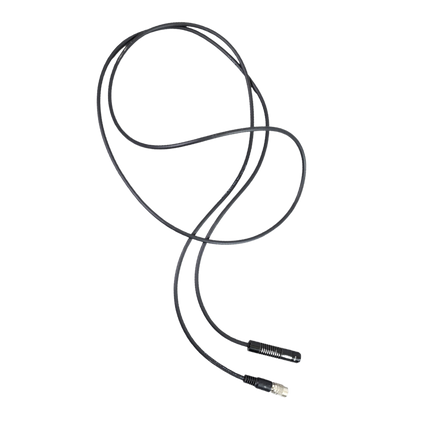

Designed for both manual and automated workflows, the SkyBeam supports up to four independent LED light guides. Each channel features dedicated intensity control and exposure timing, allowing simultaneous or staggered curing across multiple parts. Light guides connect through a locking interface to ensure stable optical coupling and are built with high-flex, robot-compatible cables tested for motion applications. LED heads are user-replaceable and rated for long operating life, reducing maintenance downtime and operating costs.

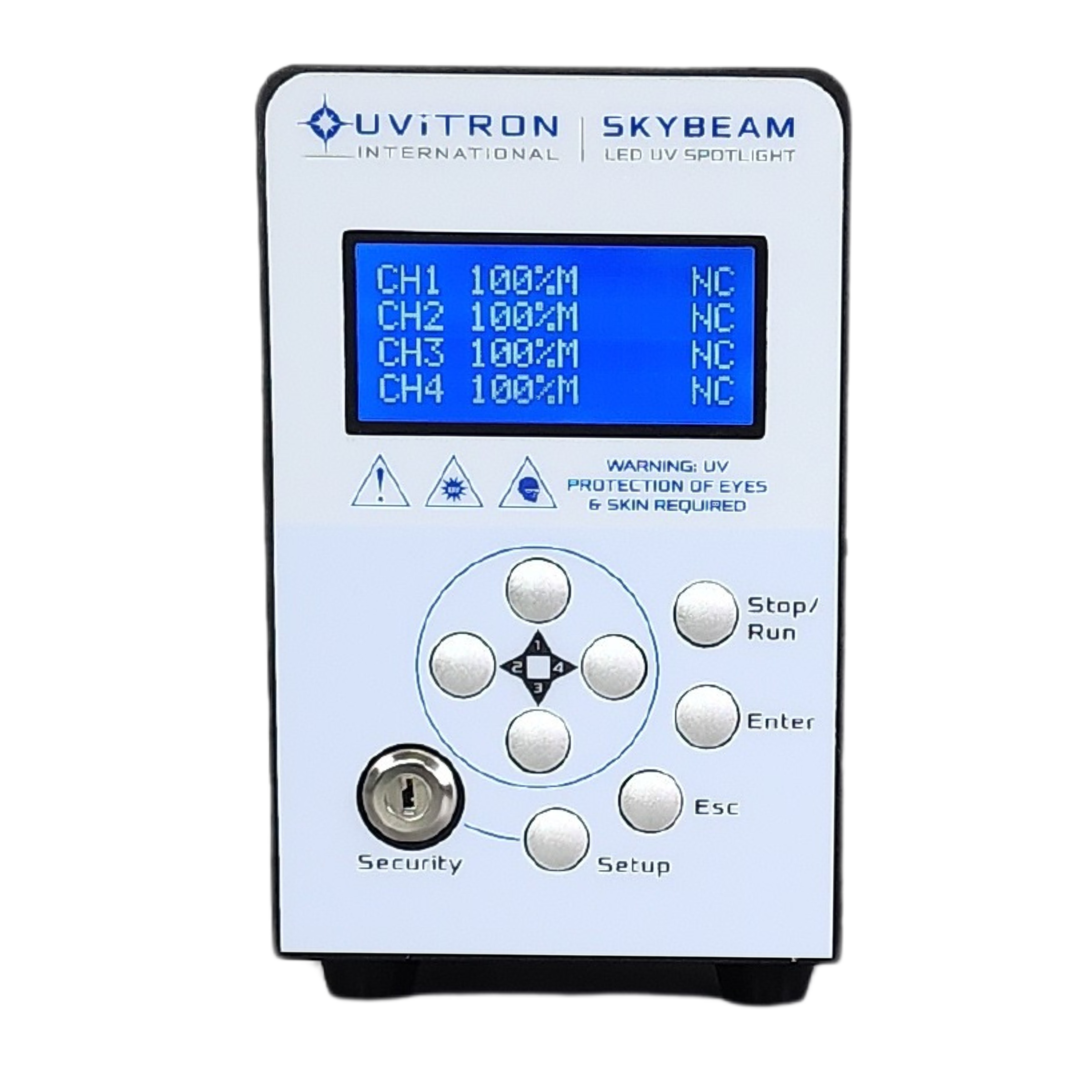

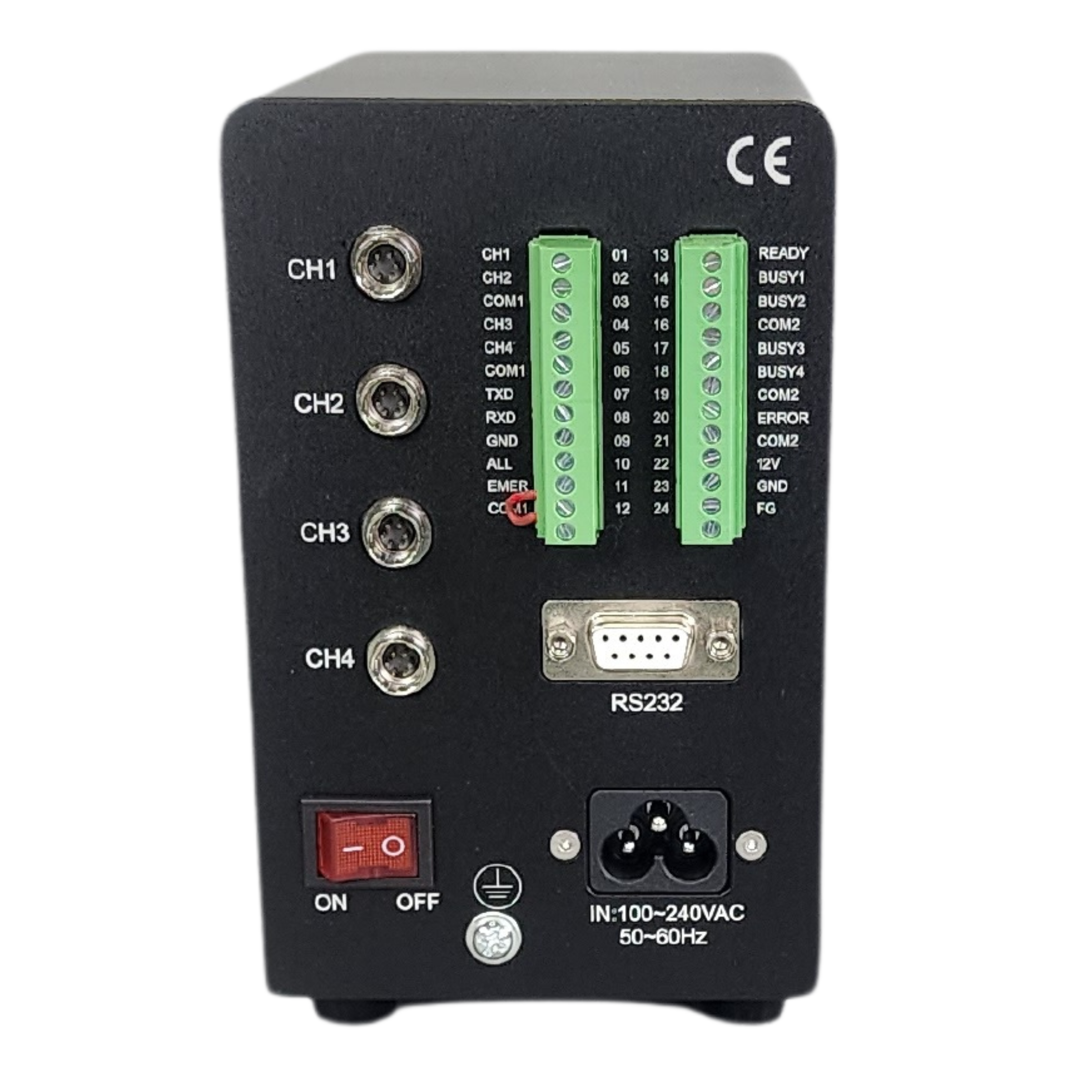

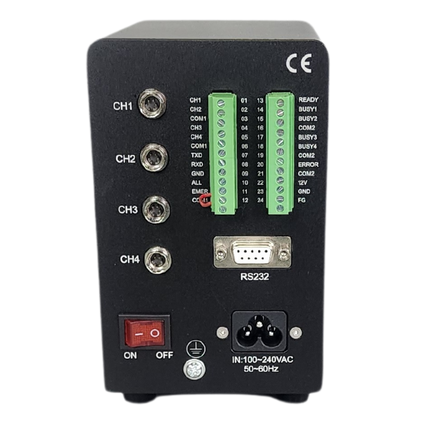

The SkyBeam is controlled via front-panel interface or rear I/O, with TTL logic and RS232 connectivity for integration into PC-based systems, PLCs, or automated assembly lines. Built-in thermal sensors monitor internal temperature and automatically reduce drive current to prevent overheating, protecting the LEDs and extending the life of the light guides. A compact footprint and lightweight enclosure allow easy installation in space-constrained environments, whether mounted on a bench, inside an enclosure, or as part of a robotic platform.
The SkyBeam is shipped ready to operate, with no external drivers or cooling hardware required. It combines solid-state reliability, tight output control, and compact industrial design for dependable UV LED curing across production environments.
Specifications
- Weight: 3.25 lbs
- Dimensions: 5.5 x 3.6 x 6.3"
- OEM Warranty: 2 Years
- Shipping Location: USA
- Manufacturer: Uvitron International
- MPN SkyBeam 365: UV3979-365
- MPN SkyBeam 385: UV3979-385
- MPN SkyBeam 395: UV3979-395
- MPN SkyBeam 405: UV3979-405
- MPN C-Cooled LG: UV4054-C
- MPN F-Cooled LG: UV4053-F
- Read more less
Pros and cons
- Lightweight Compact System
- Password Protection
- Four Independently Controlled UV Channels
- Integrated Temperature Sensor
