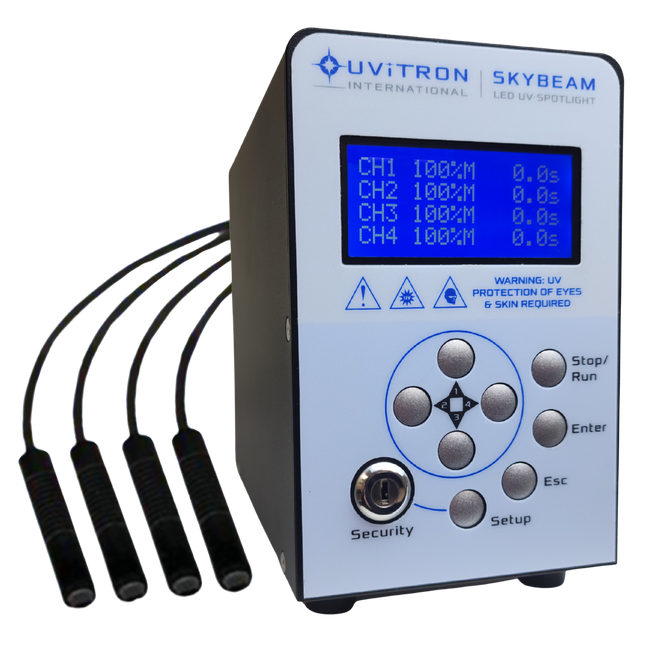

The SkyBeam is a high-intensity LED spot curing system engineered for precision curing of UV adhesives, coatings, and resins. Delivering up to 14,000 mW/cm² at the tip, the SkyBeam supports fast cure times with minimal heat transfer to the workpiece, making it ideal for thermally sensitive substrates and components. Available in 365, 385, 395, and 405 nm wavelengths, the SkyBeam offers compatibility with a wide range of UV chemistries used in electronics, medical devices, optics, and industrial assembly. Designed for both manual and automated workflows, the SkyBeam supports up to four independent LED light guides. Each channel features dedicated intensity control and exposure timing, allowing simultaneous or staggered curing across multiple parts. Light guides connect through a locking interface to ensure stable optical coupling and are built with high-flex, robot-compatible cables tested for motion applications. LED heads are user-replaceable and rated for long operating life, reducing maintenance downtime and operating costs. The SkyBeam is controlled via front-panel interface or rear I/O, with TTL logic and RS232 connectivity for integration into PC-based systems, PLCs, or automated assembly lines. Built-in thermal sensors monitor internal temperature and automatically reduce drive current to prevent overheating, protecting the LEDs and extending the life of the light guides. A compact footprint and lightweight enclosure allow easy installation in space-constrained environments, whether mounted on a bench, inside an enclosure, or as part of a robotic platform. The SkyBeam is shipped ready to operate, with no external drivers or cooling hardware required. It combines solid-state reliability, tight output control, and compact industrial design for dependable UV LED curing across production environments.
$2,899.00 - $3,999.00

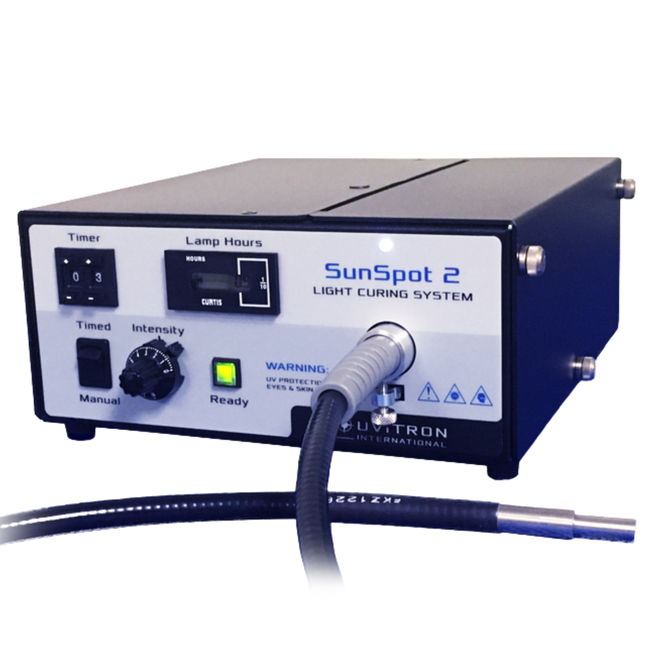

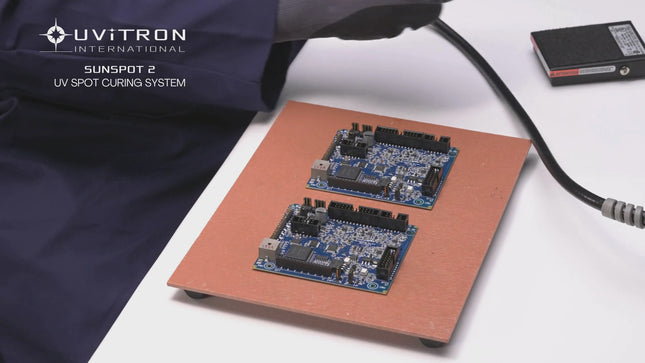

The SunSpot 2 is one of the most widely used UV spot curing systems in the industry, known for its high-intensity output, compact design, and integration flexibility. Capable of delivering over 30 W/cm² at the light guide tip, it supports rapid curing of UV adhesives, coatings, and encapsulants, including formulations with high filler content or reduced optical clarity. This level of irradiance ensures complete polymerization even in challenging geometries or through light-absorbing materials. The system operates with precision across both R&D and production environments. Its microprocessor-regulated power supply maintains stable UV output over extended duty cycles, eliminating the drift and degradation common in analog systems. This stability is critical for repeatable curing performance, particularly in applications with tight process control requirements such as medical device assembly, electronics manufacturing, and microfluidic bonding. The SunSpot 2 supports both single-pole and multi-pole liquid or quartz light guides, allowing users to cure one or multiple points simultaneously. Light guides are easily swapped, enabling quick reconfiguration between tasks without interrupting workflow. Its optical interface ensures maximum transmission efficiency with minimal energy loss between the lamp and the guide, preserving intensity at the cure site. The system’s built-in cooling and compact form factor eliminate the need for bulky external chillers or power boxes. It plugs in and runs with minimal setup, reducing installation time and simplifying integration into existing workstations or automation cells. Control options include manual intensity adjustment via the front panel, foot pedal activation, and remote I/O for PLC-driven automation. With a long lamp life, low maintenance requirements, and consistent high output, the SunSpot 2 delivers reliable curing performance over thousands of hours. Its durability and output stability make it a trusted platform across cleanrooms, production floors, and laboratories worldwide.
$4,220.00 $3,999.00

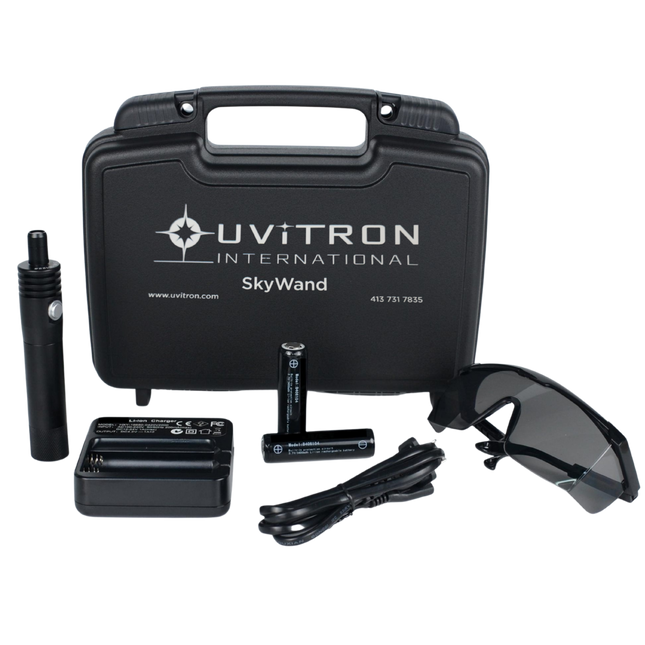

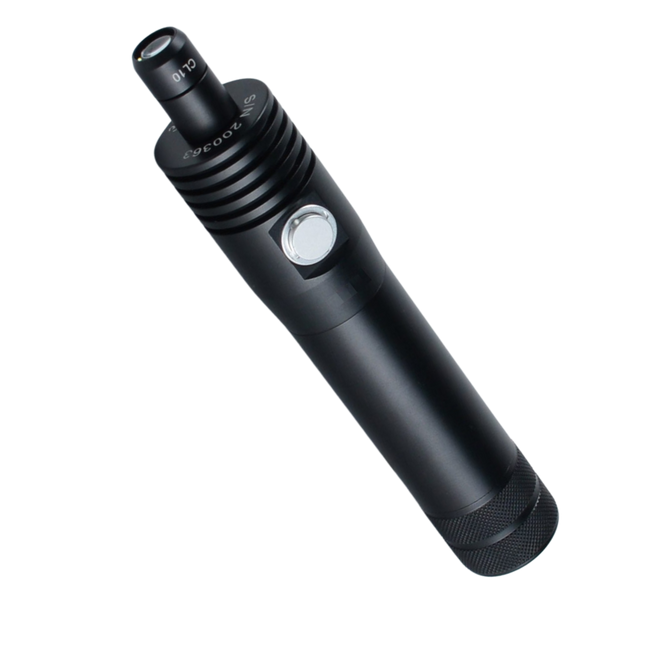

The SkyWand is a compact, handheld UV LED curing lamp designed for mobile, point-of-use applications where precision and portability are critical. It delivers high-intensity UV output with no warm-up time, no external power supply, and no cables, making it ideal for quick repairs, spot bonding, or field-based tasks that demand flexibility without sacrificing performance. Compatible with 365, 385, 395, and 405 nm wavelengths, the SkyWand supports a wide range of UV-curable adhesives, inks, and coatings. High-output LEDs provide instant, consistent irradiance with no flicker or degradation during use. A 15 mm collimating lens is pre-installed for focused curing, and optional lenses are available for narrower or wider beam profiles depending on the application. The SkyWand is powered by a rechargeable lithium-ion battery that delivers up to 2 hours of continuous runtime per charge. The activation switch is integrated directly into the lamp head, allowing for one-handed operation. The lightweight, ergonomic design minimizes operator fatigue during extended use and enables access to hard-to-reach areas in assemblies, enclosures, or on-site repairs. The unit is fully self-contained and shipped ready for immediate deployment. It requires no setup, calibration, or external components. Whether used on the production floor, in a mobile service environment, or as a bench-side tool for small-scale curing, the SkyWand provides reliable output and industrial-grade performance in a portable format. For users needing fast, flexible UV curing at the point of application, the SkyWand is the go-to solution.
$835.00 $779.00
UV spot systems deliver concentrated UV output to a small, targeted area, making them ideal for precision curing of adhesives, inks, and coatings in tight spaces. They’re used in electronics, medical device assembly, and micro-manufacturing where accuracy, intensity, and control matter.
