Uvitron has built UV curing systems in the U.S. for over thirty years. Design, assembly, and support all happen in-house. The systems run reliably, last longer, and are easy to maintain. If something goes wrong, you get real support fast.
Uvitron International
-
Uvitron UV1228 200W Flood Arc Lamp
This 200-watt metal halide arc lamp (UV1228) is engineered for compact flood curing systems requiring stable, high-intensity UV output in a small footprint. It delivers focused, uniform irradiance suitable for adhesives, coatings, and specialty resins across a range of wavelengths. Available in UVA, UVB, and visible (420 nm) output configurations. The UVA version is pre-installed in IntelliRay 200 systems and supports most standard curing processes. UVB and visible variants are available for specialized chemistries that require alternative spectral activation. Optimized for use with the IntelliRay 200 and other compatible 200-watt UV flood systems. Each lamp is factory-tested for spectral precision, thermal stability, and consistent irradiance. Select the spectral range that matches your process requirements and maintain reliable curing performance without interruption.
$240.00 - $345.00
-

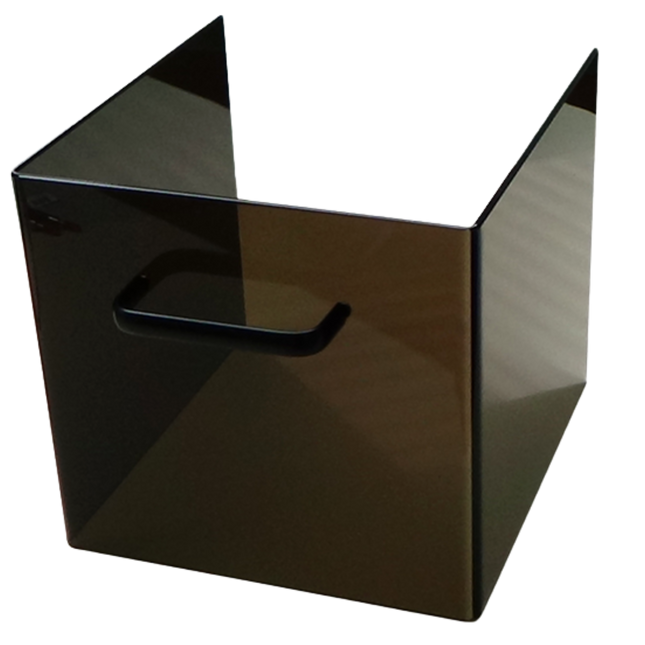

Uvitron UV0455 Wrap-Around Front UV Shield
Front-side wrap-around light shield for use with various Uvitron UV flood systems. Blocks forward-facing UV exposure to enhance operator safety during curing. The wrap-around design offers broad coverage while allowing clear access to the curing area. Installs quickly onto the system stand with no tools required. Ideal for setups where added shielding is needed without sacrificing usability. Weight: 6 lbs Dimensions: 12 x 11.5 x 11"
$262.00
-

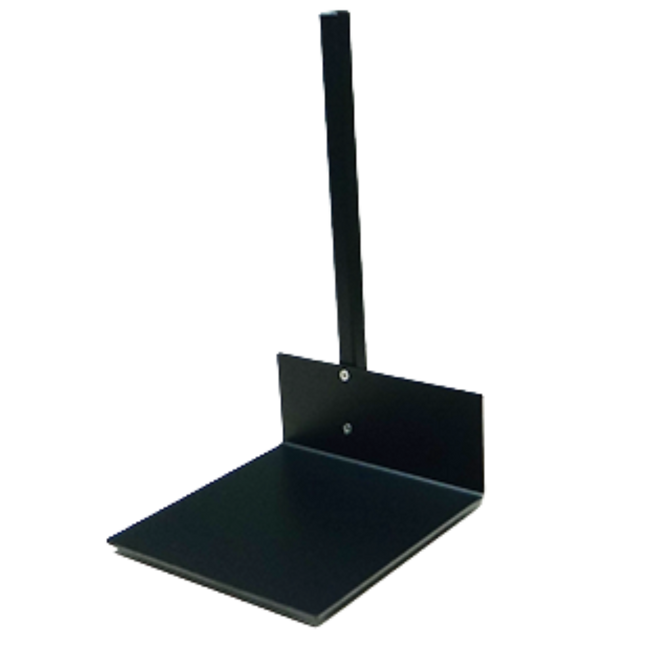

Uvitron UV Flood Stand
Height-adjustable stand for use with various Uvitron UV flood systems. Provides a stable, customizable mounting solution for positioning the lamp at the optimal curing height. Designed for easy setup and smooth vertical adjustment during operation. Compatible with the UV Flood Shield and Rear Shield for added safety. Built for reliability and convenience in lab and production environments. Weight: 12 lbs Dimensions: 16 x 14.25 x 5.25"
$380.00
-

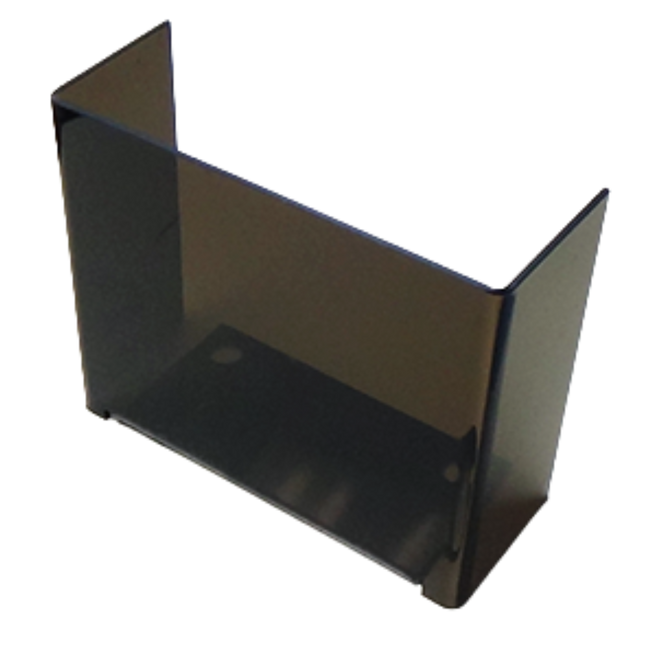

Uvitron UV1094 Rear UV Flood Shield
Rear light shield designed for use with various Uvitron UV flood systems. Provides added protection by blocking low-level backside UV exposure in setups where full shielding is required. Installs directly under the stand mounting feet with no tools needed. Flared side panels maintain full tilt access when used with a front wrap-around shield. Quick to install, built for safety, and made to fit seamlessly into your existing UV curing setup. Weight: 6lbs Dimensions: 13 x 11 x 5"
$250.00
-
Uvitron UV0834 600W Flood Arc Lamp
This 600-watt metal halide arc lamp (UV0834) is engineered for high-output UV flood curing in industrial environments where precision and reliability are non-negotiable. It delivers intense, uniform UV irradiance across a broad area, supporting fast cycle times and consistent polymerization in adhesives, coatings, and resins. Available in UVA, UVB, and visible output configurations. The UVA version provides peak output around 365 nm, making it suitable for most standard UV-curable materials. The UVB option extends into shorter wavelengths for processes requiring additional UVC energy. Visible spectrum variants at 420 nm and 460 nm are designed for materials formulated for long-wavelength activation. This lamp is optimized for use in high-intensity flood systems such as the NovaRay and other 600-watt curing platforms. Each unit undergoes full output and stability testing to ensure consistent irradiance and long operational life. Select the spectral output that aligns with your curing chemistry and maintain peak system performance without interruption.
$205.00 - $475.00
-
Uvitron UV1866 200W Short Arc Lamp Module
This replacement lamp and reflector module (UV1866) is designed specifically for the SunSpot 2 UV spot curing system and is available in UVA, UVB, and visible output configurations. Each module delivers high-intensity, collimated UV output for precision curing applications where accuracy, speed, and repeatability are critical. The UVA version, included as standard with the SunSpot 2, provides peak output around 365 nm and supports the majority of UV-curable adhesives and coatings. The UVB variant introduces shorter-wavelength energy for specialized formulations. Modules are engineered for quick replacement with no recalibration required. Each unit is tested for optical alignment, output stability, and long operating life to ensure uninterrupted performance in production and R&D environments. Choose the spectral output that matches your material specifications and maintain consistent curing performance across every cycle.
$499.00 - $923.00
-
Uvitron UV0320 400W Flood Arc Lamp
This 400-watt metal halide arc lamp (UV0320) delivers high-intensity UV output for demanding industrial flood curing applications. Engineered for stability, it maintains consistent spectral performance and irradiance across long duty cycles, making it suitable for production environments that require repeatable results. Available in UVA, UVB, and visible output configurations. The UVA lamp is optimized for most standard curing processes, with peak output around 365 nm. The UVB variant extends into the UVC range to support specialized chemistries requiring shorter wavelengths. Visible options at 420 nm and 460 nm are designed for niche adhesives and coatings formulated for longer-wavelength activation. The lamp is fully compatible with Uvitron flood systems including the PortaRay, SunRay, and IntelliRay series. Each unit is tested for output stability, spectral integrity, and operational life before shipment. Select the spectral output that matches your material and process requirements to ensure peak system performance and consistent curing efficiency.
$135.00 - $405.00
-
Uvitron LED Light Guide - 2m
Durable, high-performance light delivery for precision UV curing This 2-meter LED light guide is built for use with the SkyBeam UV curing system and is available in two cooling options to match your setup. Choose between a convection-cooled or fan-cooled variant depending on how you manage heat and airflow around your curing station. Both versions deliver efficient, high-intensity UV output from the SkyBeam unit directly to the target cure zone with minimal loss. Whether you're working on circuit boards, bonding optical components, or curing medical-grade adhesives, this guide provides the control and consistency your work demands. The light guide includes both a 6mm and 12mm lens, giving you flexibility in beam size depending on your application. With a rugged, durable build and high thermal tolerance, it’s designed for continuous use in production or lab environments. Convection-cooled is ideal for quieter or sealed environments where fan noise or airflow may be restricted. Fan-cooled offers active heat dissipation for higher-demand or enclosed setups where added airflow supports more aggressive curing cycles. MPNs: UV4053, UV4054. Lead time is 3 to 4 weeks. This item is special order and is non-returnable, non-refundable.
$459.00
-
Uvitron Liquid Light Guide - 5mm
Precision light delivery for UV spot curing systems This liquid-filled light guide delivers efficient, high-intensity UV transmission with minimal loss. The 5mm core provides a focused beam ideal for spot curing applications that demand precision and reliability. Each guide features Lumatec-compatible end tips and durable PVC sheathing for added protection and long service life. Available in 1 meter, 1.5 meter, and 2 meter lengths to suit your system layout. Designed to connect seamlessly with standard UV spot curing units and withstand repeated use in lab and production environments. Compatible with the SunSpot 2. Ships standard with the SunSpot 2. Buy as a replacement or an extra. MPNs: UV0570, UV0571, UV0572. This item is special order and is non-returnable, non-refundable.
$386.00 - $522.00
-

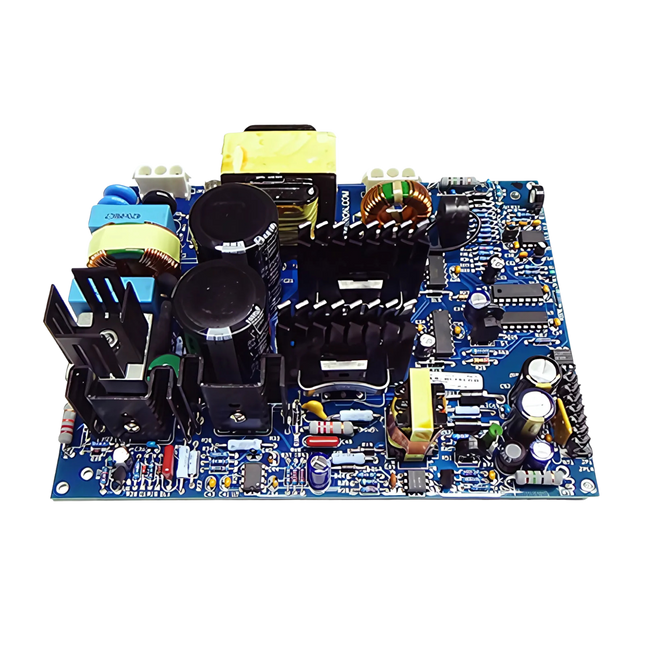

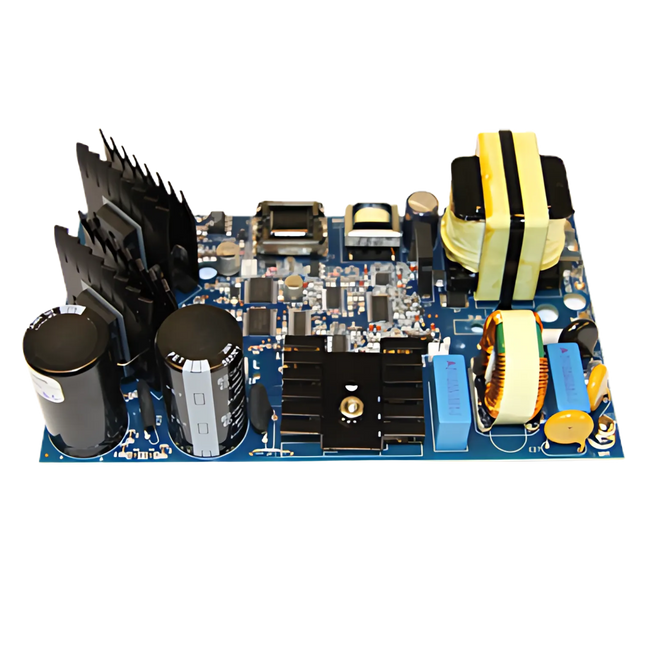

Uvitron Arc Lamp Power Supply
Choose a full-featured or economical power supply in 400W or 600W. Both deliver stable, repeatable output. The difference is how much control your system needs. The full-featured model supports 400W and 600W UV arc lamps with automatic global voltage input and tightly regulated power. Standby mode reduces output during idle time. Built-in 5V and 24V outputs power fans, shutters, or control logic. Use it for conveyor lines, UV chambers, or modernizing older setups. The economical model is compact and simple. Available in 120V or 240V, it powers 400W or 600W mercury vapor or metal halide lamps. It has a built-in high-voltage igniter, a 12V output for a fan, and a lamp-ready LED. Ideal for bench systems, portable enclosures, or budget builds. Both are built to perform. Pick the one that fits your system and get to work.
$599.00
-
Uvitron IntelliRay
The IntelliRay is a fully integrated UV flood curing system that has been a trusted choice in manufacturing, lab, and cleanroom environments for over two decades. Engineered and built in the USA by Uvitron International, it combines a compact, self-contained design with proven performance. Everything is housed in the lamp head. No external power boxes, no loose wiring, and no additional setup required. Just mount it, plug it in, and start curing. The system uses a long-life 400 or 600W arc lamp paired with a precision parabolic reflector to produce consistent, high-intensity UV output across an 8 x 6 inch area. It supports UVA, UVB, and visible spectrum lamps, making it compatible with a wide range of adhesives, coatings, and other light-curable materials. The integrated shutter and programmable exposure controls give you precise timing and repeatability. Real-time system feedback is displayed on an onboard LCD screen, and the built-in UV Power-Plus driver keeps output stable regardless of voltage fluctuations. Available with or without a light-shielded curing chamber, the IntelliRay is suited for standalone use or as part of a larger production setup. The optional chamber includes a door interlock and adjustable-height tray for safe, repeatable operation. Every unit ships from the USA and is backed by a two-year warranty from the original manufacturer. Choose the lamp head only if you’re integrating into an existing setup or enclosure. Select a configuration with the curing chamber to ensure operator safety and a fully shielded curing environment. The 600W version offers higher intensity for faster curing or more demanding applications.
$4,299.00 - $5,699.00
-
Uvitron NovaRay
The NovaRay is Uvitron’s highest-performance flood curing system, engineered for manufacturers who demand precision, repeatability, and total process control. It uses a 600W arc lamp to deliver uniform UV exposure across a spacious, temperature-regulated chamber. This even distribution is essential when post-curing brittle dental resins, optical adhesives, or thick industrial composites. Uneven curing introduces stress, deformation, or underperformance. The NovaRay eliminates those risks by maintaining thermal and radiometric stability throughout the entire cycle. Operators can create, save, and load curing profiles with specific intensity, spectral output, and exposure duration settings. This is critical for production lines that handle multiple formulations or cure-sensitive chemistries. Switching between materials takes seconds, not hours, and accuracy is retained at every stage. The integrated touchscreen provides full access to all control parameters. It is not just convenient; it reduces training time and operational error. Password-protected access ensures that only authorized personnel can alter parameters, which is essential in GMP-regulated environments. Every parameter adjustment, system cycle, and user login is automatically logged and stored. This provides full traceability for regulatory audits, ISO certification, and internal quality assurance. No additional software or middleware is needed. Built-in USB, Ethernet, and RS-485 connectivity allows seamless integration into MES systems, programmable logic controllers, or standalone workflows. The NovaRay is built in the United States, assembled under strict quality standards, and supported by a team that understands high-volume production environments. It delivers consistent output, low maintenance overhead, and full compliance support without compromising throughput or reliability. You won’t find the NovaRay at a lower price anywhere else. If you do, we'll match it.
$4,799.00 - $4,999.00
You have seen 12 out of 18 products
