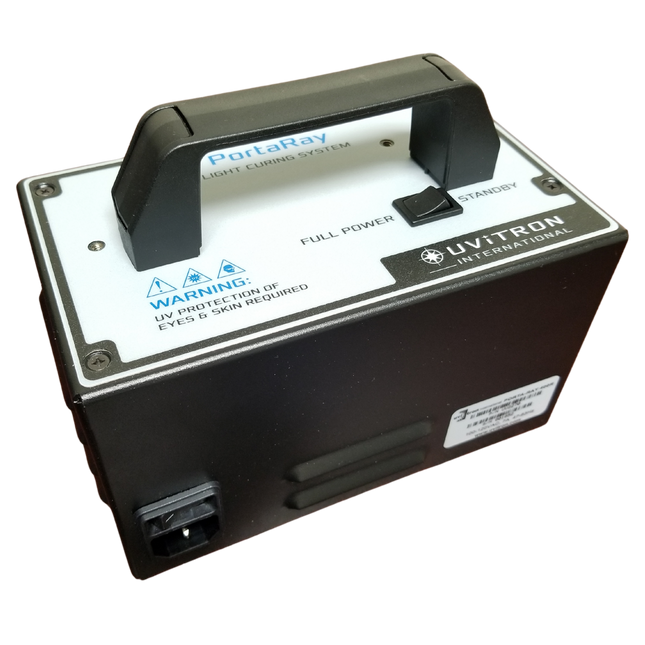

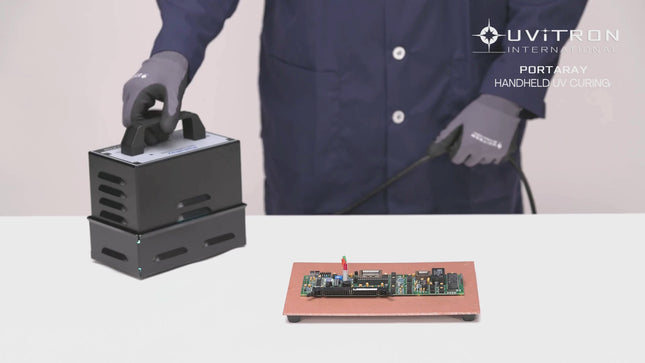

The PortaRay is a compact, high-intensity UV flood curing system engineered for mobility, precision, and consistent output. It delivers uniform UV exposure across a 5 x 5 inch curing area using a long-life arc lamp, available in 400 or 600 watt configurations. Users can choose between a parabolic reflector for wide-area coverage or a focused reflector for concentrated intensity. Both reflector options are field-replaceable and optimized for specific curing geometries and energy densities. The system’s internal power supply regulates lamp output in real time, minimizing drift and ensuring consistent irradiance throughout extended use. A built-in standby mode lowers lamp power during idle periods, significantly reducing thermal load and extending overall lamp life. With a warm-up time of under 60 seconds, the PortaRay is ready to operate quickly, improving throughput in short-run or on-demand processes. Weighing just 3 pounds, the PortaRay is designed for maximum integration flexibility. It can be handheld for field or repair work, or securely mounted to fixtures, stands, conveyors, or robotic arms for in-line use. All components are self-contained within the lamp head. There is no separate controller or ballast to install, wire, or calibrate. Simply connect to AC power and begin operation. Forced-air cooling maintains internal temperatures within safe operating limits, enabling continuous-duty cycles in demanding environments. The system is suited for lab-scale development, high-mix low-volume production, or field-service applications where full-size systems are impractical. Its compact form factor and industrial-grade output make it ideal for curing adhesives, coatings, or inks where space, portability, or rapid setup is required. Note: This configuration includes the PortaRay lamp head only. The optional carrying case is sold separately.
$1,799.00 - $1,999.00

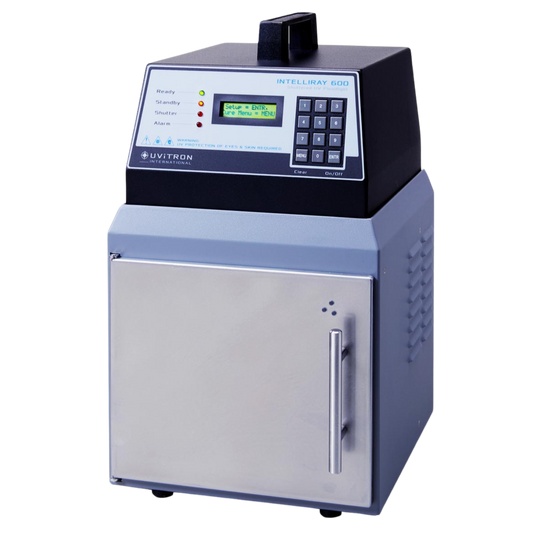

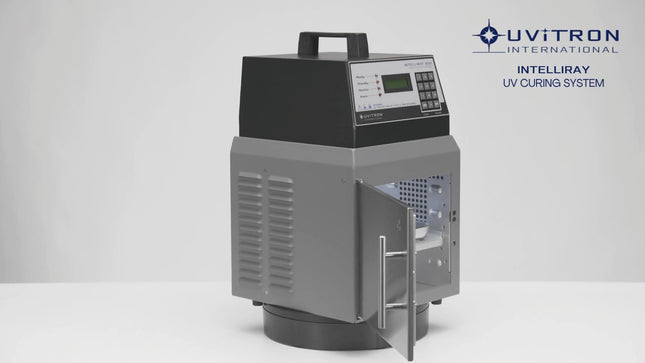

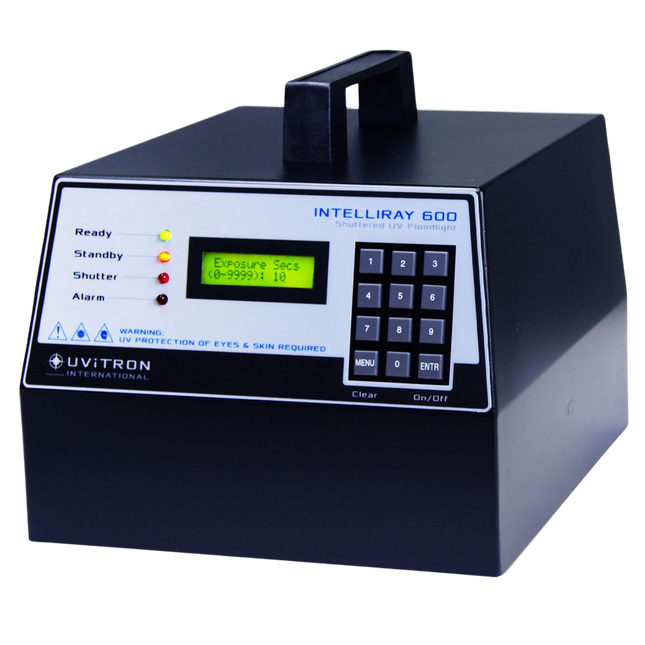

The IntelliRay is a fully integrated UV flood curing system that has been a trusted choice in manufacturing, lab, and cleanroom environments for over two decades. Engineered and built in the USA by Uvitron International, it combines a compact, self-contained design with proven performance. Everything is housed in the lamp head. No external power boxes, no loose wiring, and no additional setup required. Just mount it, plug it in, and start curing. The system uses a long-life 400 or 600W arc lamp paired with a precision parabolic reflector to produce consistent, high-intensity UV output across an 8 x 6 inch area. It supports UVA, UVB, and visible spectrum lamps, making it compatible with a wide range of adhesives, coatings, and other light-curable materials. The integrated shutter and programmable exposure controls give you precise timing and repeatability. Real-time system feedback is displayed on an onboard LCD screen, and the built-in UV Power-Plus driver keeps output stable regardless of voltage fluctuations. Available with or without a light-shielded curing chamber, the IntelliRay is suited for standalone use or as part of a larger production setup. The optional chamber includes a door interlock and adjustable-height tray for safe, repeatable operation. Every unit ships from the USA and is backed by a two-year warranty from the original manufacturer. Choose the lamp head only if you’re integrating into an existing setup or enclosure. Select a configuration with the curing chamber to ensure operator safety and a fully shielded curing environment. The 600W version offers higher intensity for faster curing or more demanding applications.
$4,299.00 - $5,699.00

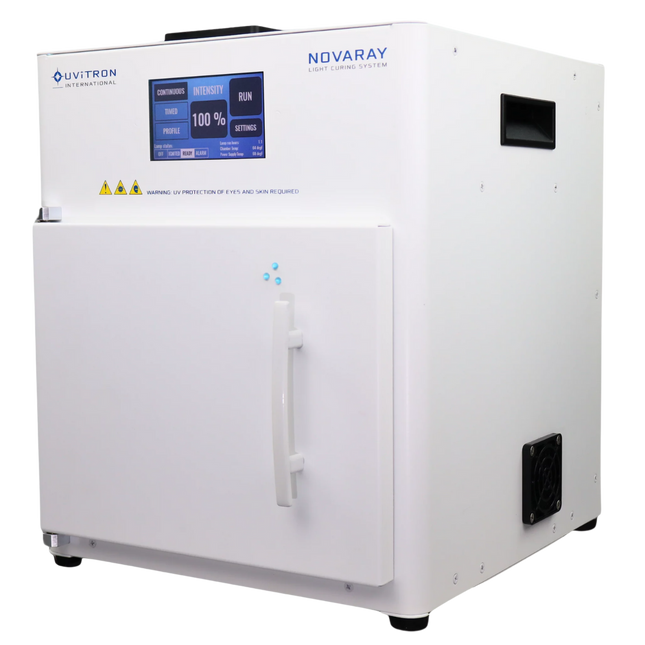

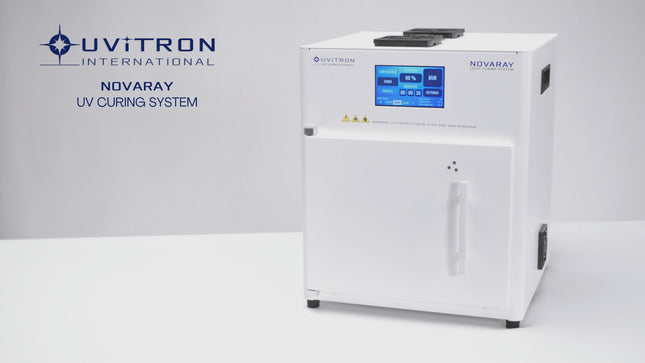

The NovaRay is Uvitron’s highest-performance flood curing system, engineered for manufacturers who demand precision, repeatability, and total process control. It uses a 600W arc lamp to deliver uniform UV exposure across a spacious, temperature-regulated chamber. This even distribution is essential when post-curing brittle dental resins, optical adhesives, or thick industrial composites. Uneven curing introduces stress, deformation, or underperformance. The NovaRay eliminates those risks by maintaining thermal and radiometric stability throughout the entire cycle. Operators can create, save, and load curing profiles with specific intensity, spectral output, and exposure duration settings. This is critical for production lines that handle multiple formulations or cure-sensitive chemistries. Switching between materials takes seconds, not hours, and accuracy is retained at every stage. The integrated touchscreen provides full access to all control parameters. It is not just convenient; it reduces training time and operational error. Password-protected access ensures that only authorized personnel can alter parameters, which is essential in GMP-regulated environments. Every parameter adjustment, system cycle, and user login is automatically logged and stored. This provides full traceability for regulatory audits, ISO certification, and internal quality assurance. No additional software or middleware is needed. Built-in USB, Ethernet, and RS-485 connectivity allows seamless integration into MES systems, programmable logic controllers, or standalone workflows. The NovaRay is built in the United States, assembled under strict quality standards, and supported by a team that understands high-volume production environments. It delivers consistent output, low maintenance overhead, and full compliance support without compromising throughput or reliability. You won’t find the NovaRay at a lower price anywhere else. If you do, we'll match it.
$4,799.00 - $4,999.00
The SkyRay is Uvitron’s flagship all-in-one LED flood curing system, engineered for manufacturers moving away from arc lamp limitations. It delivers up to 800 watts of solid-state UV output from a single compact head with no external drivers, shutters, or cooling equipment required. Designed for fast deployment, the SkyRay connects directly to standard AC power and reaches curing-ready output in seconds. The system produces uniform irradiance over a 5 x 5 inch area, suitable for high-speed curing of UV adhesives, inks, or coatings. Available wavelengths include 365, 385, 395, and 405 nm, allowing precise alignment with material absorption spectra. Output intensity is digitally adjustable in 1 percent increments from 10 to 100 percent, making it suitable for both sensitive chemistries and high-throughput applications. A front-mounted LCD interface provides direct control over exposure time, output level, and status monitoring. Internal power regulation ensures consistent intensity regardless of fluctuations in line voltage. The SkyRay includes a variable-speed cooling fan and removable filter to manage internal temperature, reduce contamination risk, and extend the life of the LED array and electronics. The enclosure includes integrated handles and a compact footprint for quick repositioning or fixed mounting. Password protection is available to lock critical settings in regulated environments. Multiple SkyRay units can be installed in parallel to scale coverage for larger substrates or multi-zone curing without the need for external synchronization or added control infrastructure. Choose the lamp head only if integrating into an existing shielding or automated system. For operator-facing environments, select a configuration with the compatible curing chamber to ensure proper light containment and compliance with safety standards.
$4,999.00 - $7,299.00

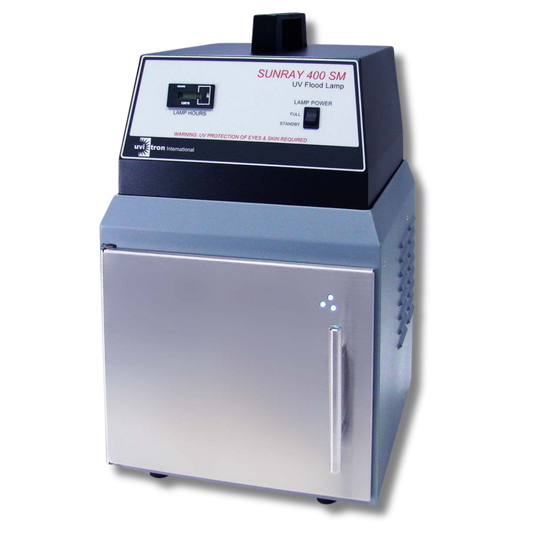

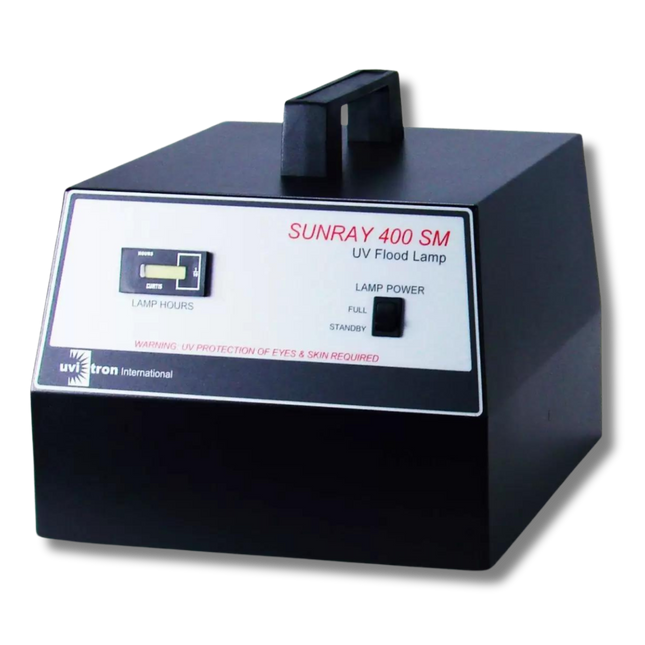

The SunRay is Uvitron’s simplest UV flood curing system, designed for direct, no-frills operation. It delivers uniform UV output across an 8 x 6 inch area using either a 400 or 600 watt arc lamp. There are no displays, no programmable functions, and no mechanical shutters, just a compact, self-contained curing head engineered for reliable performance. Power is internally regulated to maintain consistent irradiance during use. A rocker switch toggles between full output and standby mode, reducing thermal load and extending lamp life during idle periods. An integrated hour meter tracks lamp runtime for proactive maintenance and replacement. The SunRay reaches operating conditions quickly and maintains stable UV output throughout its duty cycle. The unit’s low-profile, lightweight design allows for flexible installation in benchtop, rack-mounted, or enclosed configurations. For users integrating into existing shielding or automation systems, the standalone lamp head provides a cost-effective solution. For environments requiring light containment and operator safety, a complete configuration with Uvitron’s curing chamber is recommended. The 600 watt model is ideal for thicker coatings, higher-speed processes, or materials requiring elevated energy exposure. The SunRay is intended for production setups where simplicity, consistency, and footprint matter more than programmability. It is a solid, entry-level system for curing adhesives, inks, or coatings in controlled environments. SpotCraft Tip: If you require programmable controls, built-in timers, or shielding, consider upgrading to the IntelliRay. We carry the SunRay for customers who need straightforward UV curing without the cost or complexity of advanced features.
$2,499.00 - $3,999.00
UV flood systems deliver intense, even UV exposure across large surfaces for curing adhesives, coatings, inks, and encapsulants. Built for reliability and precision, they support both arc and LED sources and suit conveyors, workstations, and batch setups where fast, consistent curing is critical.
