The SkyBeam is a high-intensity LED spot curing system engineered for precision curing of UV adhesives, coatings, and resins. Delivering up to 14,000 mW/cm² at the tip, the SkyBeam supports fast cure times with minimal heat transfer to the workpiece, making it ideal for thermally sensitive substrates and components. Available in 365, 385, 395, and 405 nm wavelengths, the SkyBeam offers compatibility with a wide range of UV chemistries used in electronics, medical devices, optics, and industrial assembly. Designed for both manual and automated workflows, the SkyBeam supports up to four independent LED light guides. Each channel features dedicated intensity control and exposure timing, allowing simultaneous or staggered curing across multiple parts. Light guides connect through a locking interface to ensure stable optical coupling and are built with high-flex, robot-compatible cables tested for motion applications. LED heads are user-replaceable and rated for long operating life, reducing maintenance downtime and operating costs. The SkyBeam is controlled via front-panel interface or rear I/O, with TTL logic and RS232 connectivity for integration into PC-based systems, PLCs, or automated assembly lines. Built-in thermal sensors monitor internal temperature and automatically reduce drive current to prevent overheating, protecting the LEDs and extending the life of the light guides. A compact footprint and lightweight enclosure allow easy installation in space-constrained environments, whether mounted on a bench, inside an enclosure, or as part of a robotic platform. The SkyBeam is shipped ready to operate, with no external drivers or cooling hardware required. It combines solid-state reliability, tight output control, and compact industrial design for dependable UV LED curing across production environments.
$2,899.00 - $3,999.00

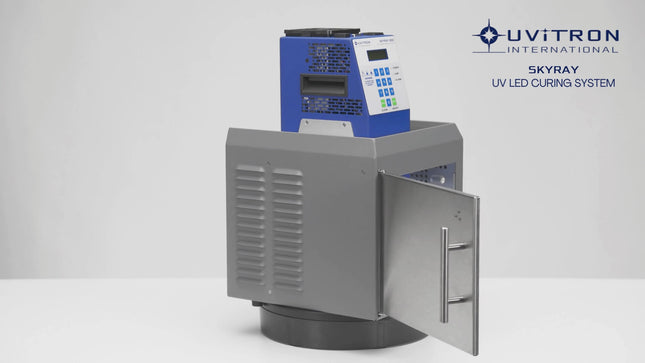

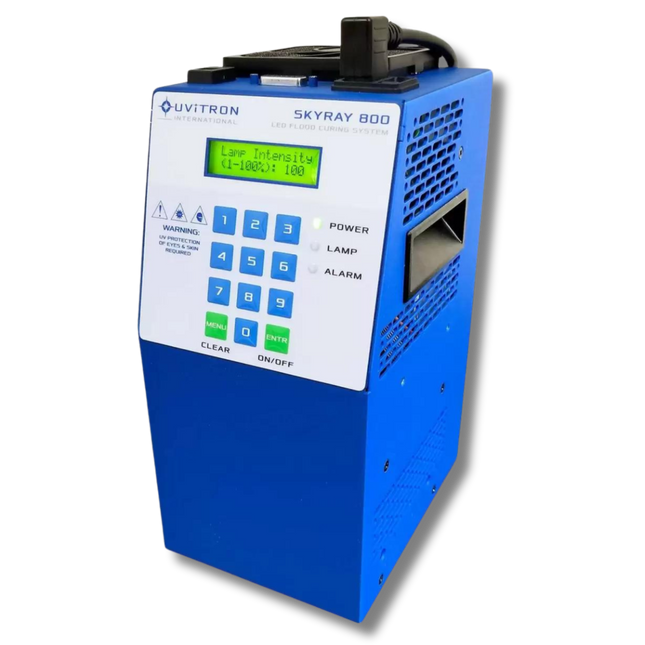

The SkyRay is Uvitron’s flagship all-in-one LED flood curing system, engineered for manufacturers moving away from arc lamp limitations. It delivers up to 800 watts of solid-state UV output from a single compact head with no external drivers, shutters, or cooling equipment required. Designed for fast deployment, the SkyRay connects directly to standard AC power and reaches curing-ready output in seconds. The system produces uniform irradiance over a 5 x 5 inch area, suitable for high-speed curing of UV adhesives, inks, or coatings. Available wavelengths include 365, 385, 395, and 405 nm, allowing precise alignment with material absorption spectra. Output intensity is digitally adjustable in 1 percent increments from 10 to 100 percent, making it suitable for both sensitive chemistries and high-throughput applications. A front-mounted LCD interface provides direct control over exposure time, output level, and status monitoring. Internal power regulation ensures consistent intensity regardless of fluctuations in line voltage. The SkyRay includes a variable-speed cooling fan and removable filter to manage internal temperature, reduce contamination risk, and extend the life of the LED array and electronics. The enclosure includes integrated handles and a compact footprint for quick repositioning or fixed mounting. Password protection is available to lock critical settings in regulated environments. Multiple SkyRay units can be installed in parallel to scale coverage for larger substrates or multi-zone curing without the need for external synchronization or added control infrastructure. Choose the lamp head only if integrating into an existing shielding or automated system. For operator-facing environments, select a configuration with the compatible curing chamber to ensure proper light containment and compliance with safety standards.
$4,999.00 - $7,299.00
The SkyWand is a compact, handheld UV LED curing lamp designed for mobile, point-of-use applications where precision and portability are critical. It delivers high-intensity UV output with no warm-up time, no external power supply, and no cables, making it ideal for quick repairs, spot bonding, or field-based tasks that demand flexibility without sacrificing performance. Compatible with 365, 385, 395, and 405 nm wavelengths, the SkyWand supports a wide range of UV-curable adhesives, inks, and coatings. High-output LEDs provide instant, consistent irradiance with no flicker or degradation during use. A 15 mm collimating lens is pre-installed for focused curing, and optional lenses are available for narrower or wider beam profiles depending on the application. The SkyWand is powered by a rechargeable lithium-ion battery that delivers up to 2 hours of continuous runtime per charge. The activation switch is integrated directly into the lamp head, allowing for one-handed operation. The lightweight, ergonomic design minimizes operator fatigue during extended use and enables access to hard-to-reach areas in assemblies, enclosures, or on-site repairs. The unit is fully self-contained and shipped ready for immediate deployment. It requires no setup, calibration, or external components. Whether used on the production floor, in a mobile service environment, or as a bench-side tool for small-scale curing, the SkyWand provides reliable output and industrial-grade performance in a portable format. For users needing fast, flexible UV curing at the point of application, the SkyWand is the go-to solution.
$835.00 $779.00
UV LED systems offer efficient, cool-running, instant-on curing for adhesives, inks, and coatings. They provide consistent output with long operating life and low maintenance. Ideal for applications needing precise wavelength control, energy savings, and reduced heat.
